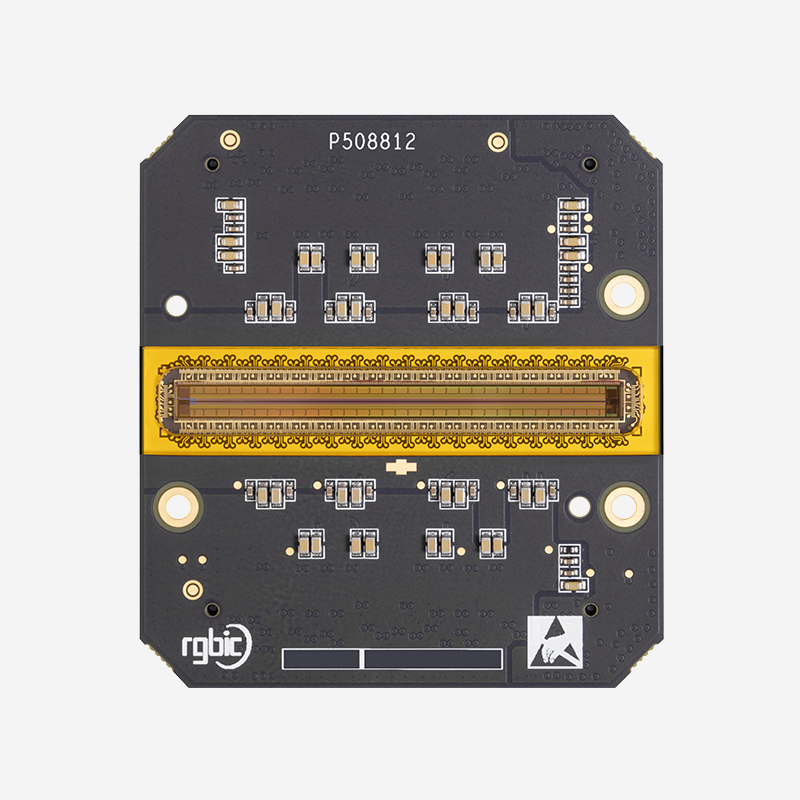

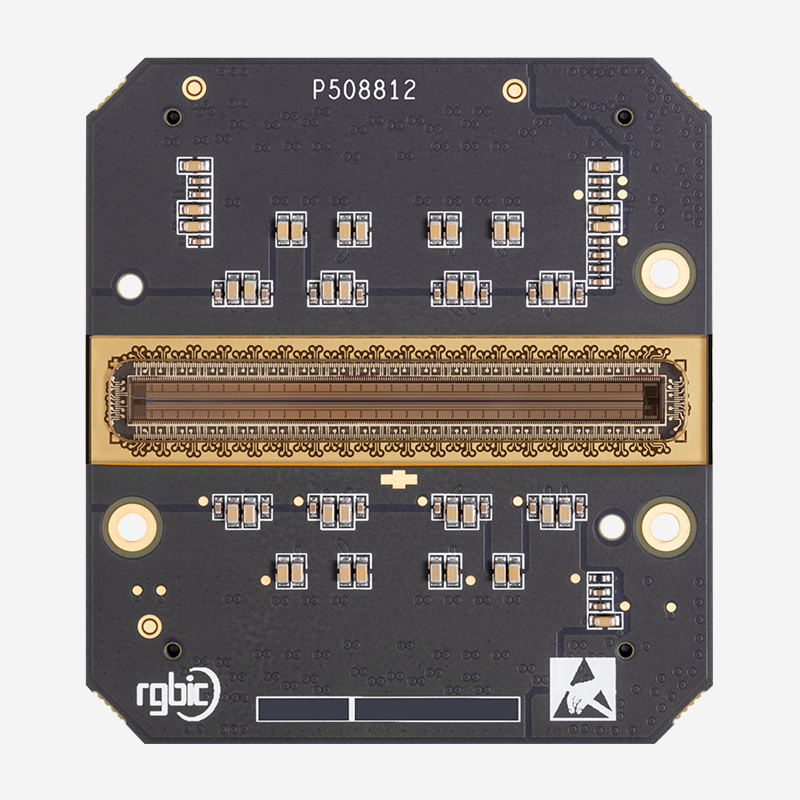

P508812 is an 8Kresolution 12-line CMOS image sensor with 5.0um global shutter pixel with true CDS. P508812 supportson-chip TimeDelay Integration(TDI).Monochrome version can be provided upon request, which can support up to 12-line mono pixel.
High sensitivity, low noise and low PLS which make the sensor suitable for PCB inspection and other high end machine vision applications. P508812 achieves 80KHz line rate at full resolution.
